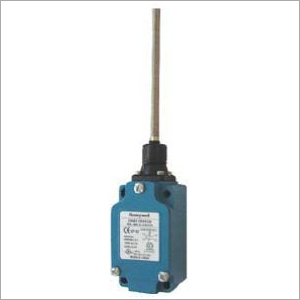

Honeywell Limit Switch SZL-VL-S-B

Get a Price/Quote

MOQ : 10 Pieces

Honeywell Limit Switch SZL-VL-S-B Specification

Protection Level
IP65

Temperature Range
-25C to +70C

Mechanical Life
10,000,000 operations (min.)

Rated Voltage
250V AC

Finish Type
Matte finish

Max. Current
10A

Automation Grade
Industrial

Response Time
15 ms (max)

Number of Module
Single

Circuit Type
SPDT (Single Pole Double Throw)

Product Type
Limit Switch

Material
Thermoplastic/Metal Alloy

Insulation Resistance
100 M (at 500VDC)

Contact Resistance
25 m (initial)

Max. Voltage
250-500 Volt (V)

Operating Temperature
-25C to +70C

Stoke
10 mm (typical)

Size
Standard compact

Color
Blue

Weight
Approx. 200g

Mounting Type
Panel Mount / Screw Mount

Current Rating
5A, 10A

No Of Poles
1

Operating Force
max. 13N

Vibration Resistance
10-55 Hz, 1.5 mm amplitude

Standards Compliance
IEC60947-5-1/EN60947-5-1

Electrical Life
500,000 operations (at full load)

Actuator Type
Plunger (top push)

Connection Type
Screw Terminal

Contact Configuration
1NO+1NC

Shock Resistance
1000 m/s2 (approx. 100G)

Housing Material
Reinforced plastic

Honeywell Limit Switch SZL-VL-S-B Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
100 Pieces Per Week

Delivery Time
1 Days

Main Domestic Market
All India

About Honeywell Limit Switch SZL-VL-S-B

Honeywell Limit Switch SZL-VL-S-B Miniature Industrial Limit Switches. Honeywell Limit Switch SZL-VL-S-B miniature-type limit switch is specially designed for use in applications where limited mounting space is available. These switches are suitable for OEM machinery that requires a rugged and reliable limit switch capable of being mounted in space restricted applications.

MICRO SWITCH Global Limit Switches: SZL-VL Series General Purpose Limit Switch, Side Rotary Adjustable Roller Lever Actuator, 1NC 1NO Single Pole Double Throw (SPDT), Double Break, Flexible Cable Gland

Engineered for Industrial Reliability

The SZL-VL-S-B limit switch is tailored for rigorous industrial use, with a mechanical life exceeding 10 million cycles and electrical endurance up to 500,000 operations. Its sturdy construction provides resilience against vibration and shock, while IP65 protection safeguards internal mechanisms from dust and water ingress. This makes the switch highly dependable in demanding automation setups.

Versatile and User-Friendly Design

Featuring a compact, reinforced-plastic housing, top-plunger actuator, and straightforward screw terminal connection, installation and maintenance of this switch are quick and efficient. Compatible with a variety of mounting options, it supports panel and screw mount, adapting seamlessly to your control panels or machinery.

Approved for Safety and Global Standards

Complying with IEC60947-5-1/EN60947-5-1, the switch meets essential safety and performance benchmarks for both domestic and international applications. Its standardization ensures that you have a product trusted by industries worldwide, giving assurance in commercial and manufacturing environments.

FAQ's of Honeywell Limit Switch SZL-VL-S-B:

Q: How is the SZL-VL-S-B limit switch installed in industrial applications?

A: The Honeywell SZL-VL-S-B limit switch can be installed using either panel mount or screw mount options. Its compact design and accessible screw terminals make wiring and integration into automated systems straightforward for installers and maintenance teams.

Q: What advantages does the reinforced plastic housing provide?

A: The reinforced plastic housing offers robust protection against harsh industrial conditions, making the switch resistant to mechanical impacts, vibration, and dust. This durability ensures a long service life and consistent performance even in challenging environments.

Q: When should the SZL-VL-S-B limit switch be used in an automation system?

A: This switch is ideally used when precise and reliable position sensing or limit control is required, especially in environments prone to shock, vibration, or moisture. Its high mechanical and electrical endurance make it suitable for continuous industrial operations.

Q: Where can the SZL-VL-S-B limit switch be purchased in India?

A: The SZL-VL-S-B is available from authorized distributors, exporters, manufacturers, suppliers, and traders across India. As a widely adopted industrial automation component, it can be sourced from most reputable electrical and automation equipment suppliers.

Q: What is the process for wiring the screw terminal connections of this limit switch?

A: To wire the limit switch, strip the wire ends and secure them into the screw terminals according to the provided wiring diagram. The SPDT configuration allows for both normally open (NO) and normally closed (NC) circuit options, ensuring flexibility in control setups.

Q: Can the SZL-VL-S-B be used in wet or dusty environments?

A: Yes, the switch is rated IP65, meaning it is protected against dust ingress and water jets. This makes it suitable for operations in environments where exposure to such elements is likely.

Q: What are the main benefits of using the SZL-VL-S-B limit switch?

A: Key benefits include long mechanical and electrical life, fast response time (max. 15 ms), robust shock and vibration resistance, easy wiring, compatibility with international safety standards, and suitability for use in various demanding industrial settings.
